Products - Edge Banding Machines - EKOBANT 264 EDGE BANDING MACHINE
Detail Technical Informations Settlement plan Catalog

MACHINE LENGHT 2,6 METERS. IT HAS PLC CONTROL PANEL AND 4 UNITS.

WORKING SPEED IS 12 METER/MINUTE.


AIR COMPRESOR WITH AIR DRYER, DUST SUCTION MACHINE AND REGULATOR MUST BE USED FOR MACHINE. START-UP, INSTALLATION AND MAINTENANCE SHOULD BE DONE FROM UNVER WOODWORKING MACHINERY QUALIFIED TECHNICIANS. IF YOU DONT OBEY CONDITIONS, YOUR MACHINE LIFESPAN WILL SHORTEN. IT WILL NOT INCLUDED WARRANTY.

Control Unit Working speed 12 meter/ minute
Front Heater With resistance material can heat 80 degree3 thus humidity prevent
Glue Tank

4 liter glue capacity, ready 5-15 minutes. Stiffened and annealed glue roller.?

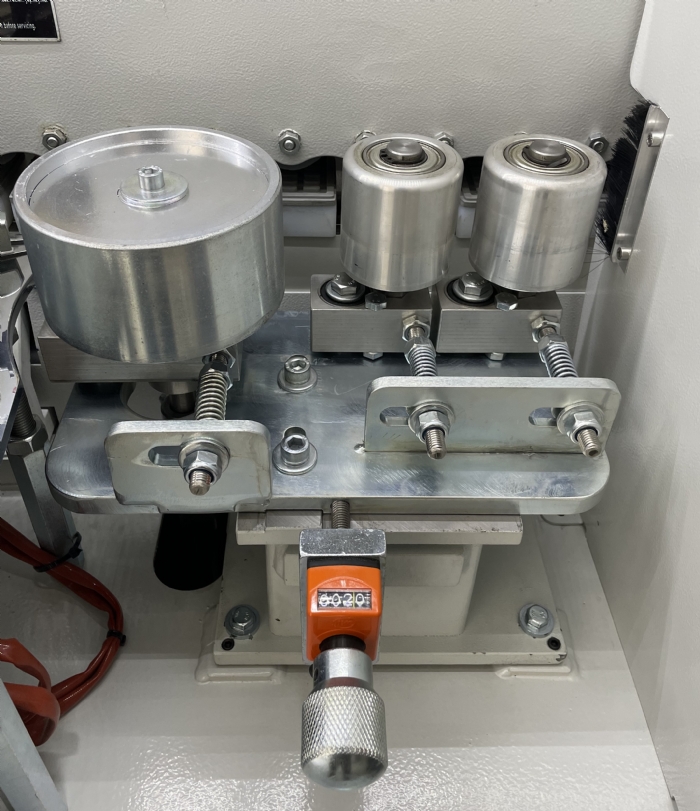

Press Unit

Band sticks to mdf etc with 4 rollers press. Press unit calibrate by sensetive indicator

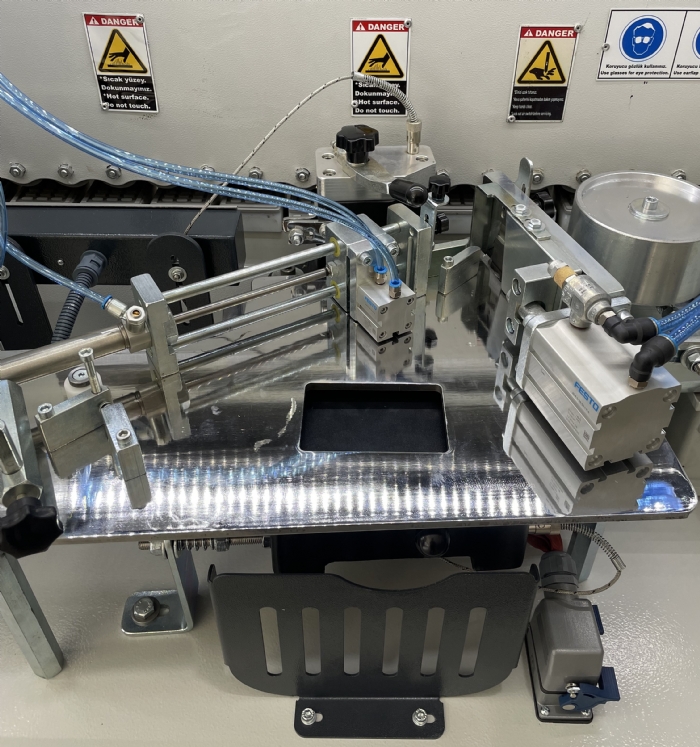

End Milling İt cuts beginning-end sensitively with high frequency motors at 1200 rpm
Bottom-Top Milling Surface miling sensitively with high frequency motors at 18000 rpm. 0,4 - 3 mm band thickness calibrate by sensitively indicator.

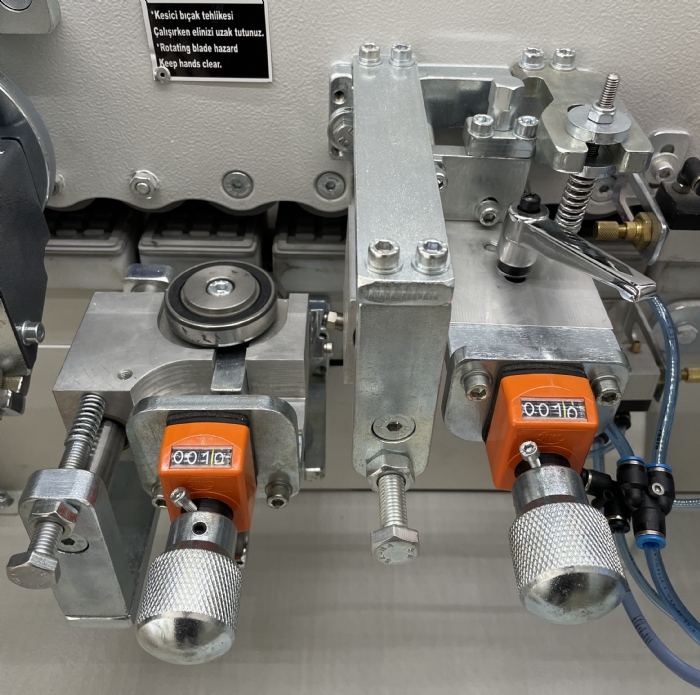

Scraping

Scraping 0,4-3 mm band thickness calibrated by sensitively indicator.

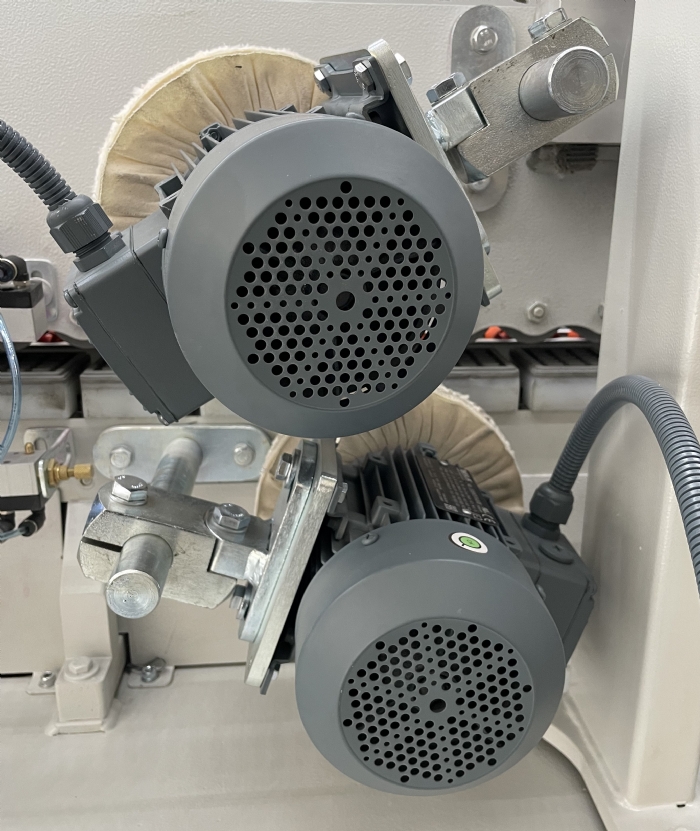

Buffing Unit

Clean and bright surface obtained by 15° angled buffer motors.

Dust Suction 1200 m3 dust suction fan absorb all pvc excelsiors from bottom-top milling.

TECHNICAL INFORMATIONS

EKOBANT 264

1)     MAXIMUM PANEL THICKNESS

8 MM / 60 MM

2)     BAND THICKNESS

0,4 MM / 5 MM

3)     MINIMUM PANEL LENGTH

120 MM

4)     MINIMUM PANEL WIDTH

100 MM

5)     GLUE CAPACITY

4 LT / 5 KG

6)     GLUE HEATING TIME

25-30 MINUTE

7)     WORKING SPEED

12 M/MIN

8)     END MILLING CUTTER MOTORS (2 PIECES)

0,37 KW 12.000 R.P.M

9)     BOTTOM-TOP MILLING CUTTER MOTORS (2 PIECES)

0,55 KW 18.000 R.P.M

10)   BUFFER MOTORS (2 PIECES)

0,25 KW / 3.000R.P.M

11)   DUST SUCTION MOTOR

0.75 KW 1.200 M3

12)   POWER

8 KW

13)   VOLTAGE

380 – 400 V / 50–60 HZ

14)   CURRENT

22 AMPER

15)   WORKING PRESSURE

4/6 BAR

16)   TRANSPORTATION DIMENSIONS LENGHT - WIDTH - HEIGHT

3.6 X 0.75 X 1.5 M

17)   WEIGHT

900 ± 25 KG
