Products - Edge Banding Machines - EKOBANT 427 EDGE BANDING MACHINE
Detail Technical Informations Settlement plan Catalog

MACHINE LENGHT 4,2 METERS. IT HAS PLC CONTROL PANEL AND 7 UNITS.

WORKING SPEED IS 10 METER/MINUTE.


AIR COMPRESOR WITH AIR DRYER, DUST SUCTION MACHINE AND REGULATOR MUST BE USED FOR MACHINE. START-UP, INSTALLATION AND MAINTENANCE SHOULD BE DONE FROM UNVER WOODWORKING MACHINERY QUALIFIED TECHNICIANS. IF YOU DONT OBEY CONDITIONS, YOUR MACHINE LIFESPAN WILL SHORTEN. IT WILL NOT INCLUDED WARRANTY.


Control Unit Working speed 10 meter/ minute
Optional Touchable Control Panel

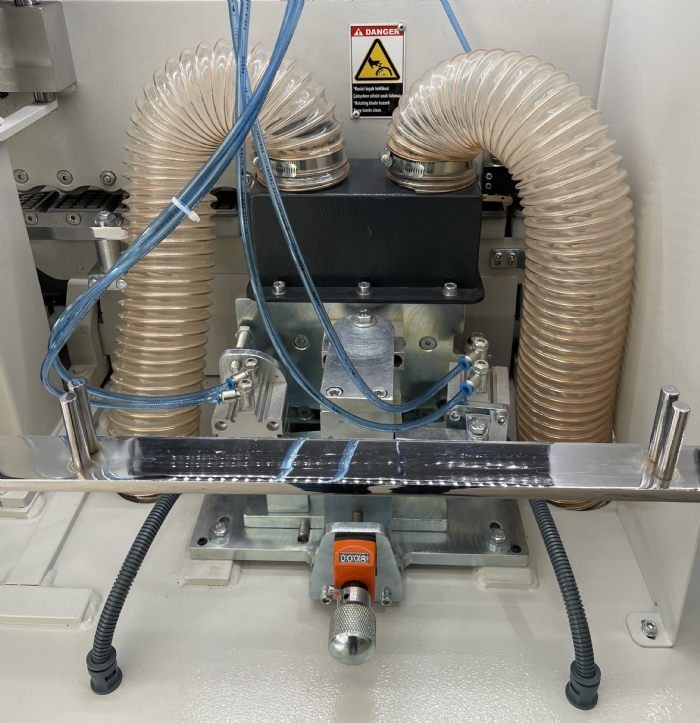

Pre-milling 2 pieces 2,2 Kw 12000 rpm powerful motors cuts to 2 mm. Dust suction unit absorbs all shavings.
Infrared Heating Front surfaces heating and frying. Prepeares glue stick propley.
Glue Tank 4 liter glue capacity, ready 5-15 minutes. Stiffened and annealed glue roller.?

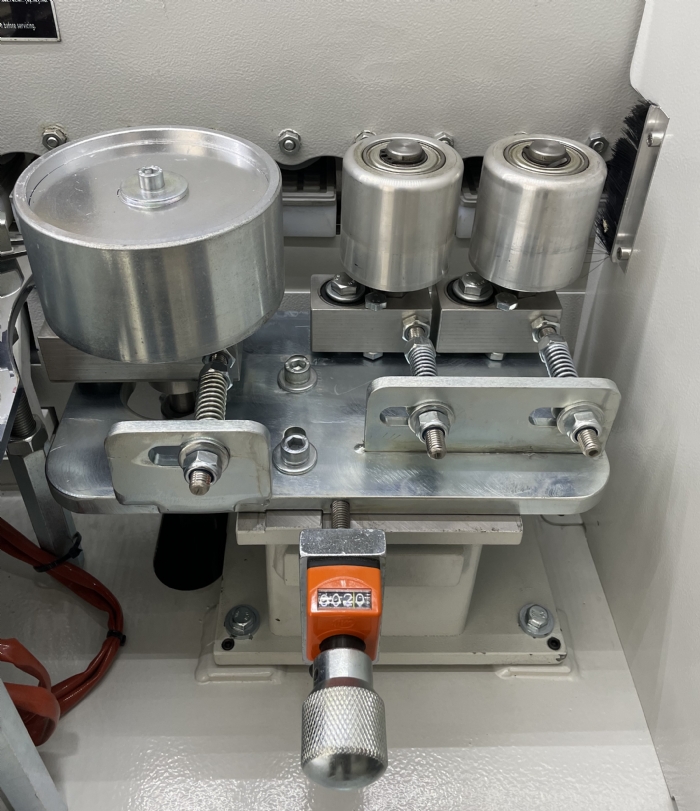

Press Unit Band sticks to mdf etc with 4 rollers press. Press unit calibrate by sensetive indicator.

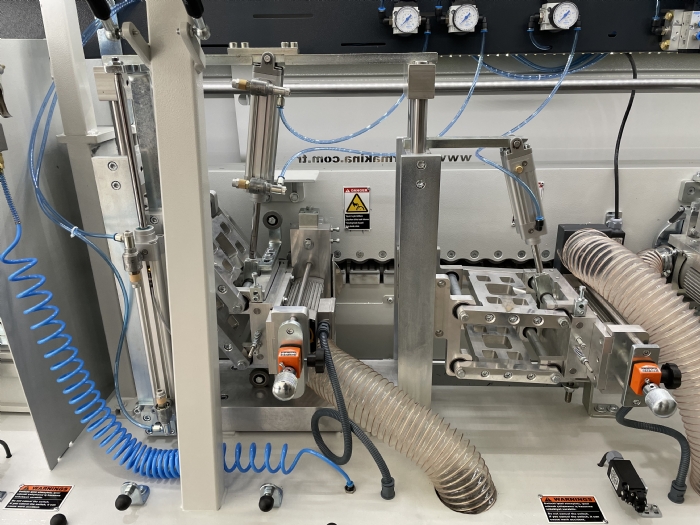

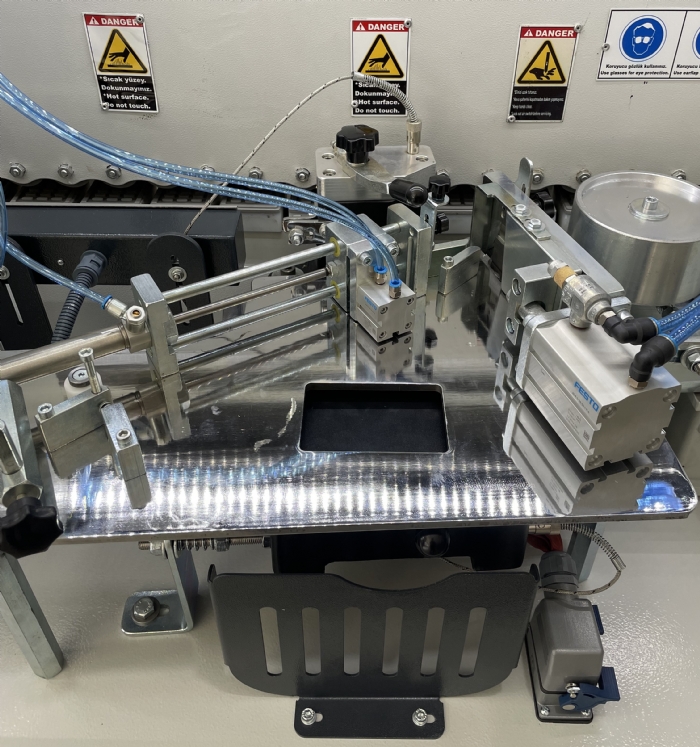

Trimming + Bottom Milling At 1800 rpm with 2 motors and 2 pistons rounding corners and bottom surface. 0,4 - 3 mm band thickness calibrated by sensetively indicator easly

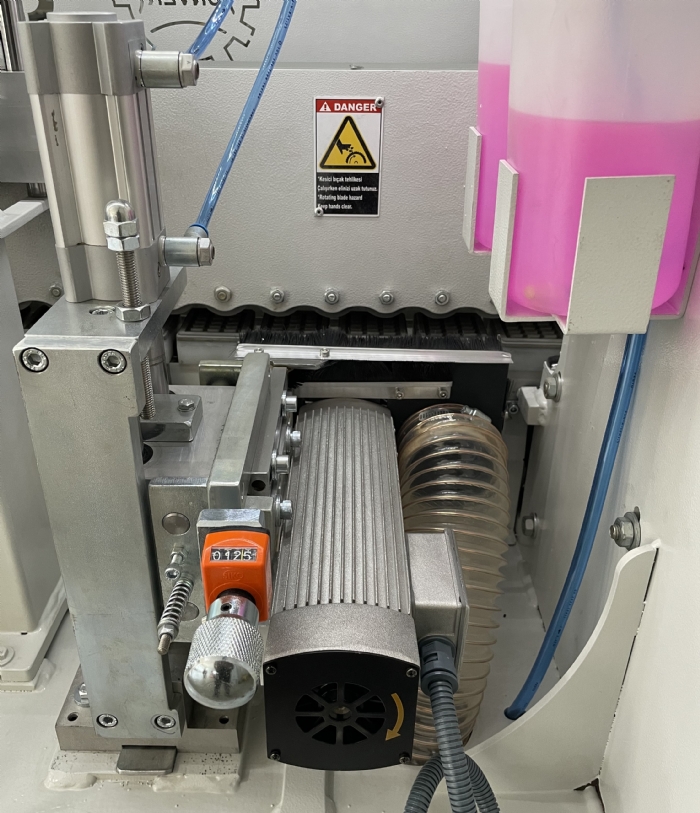

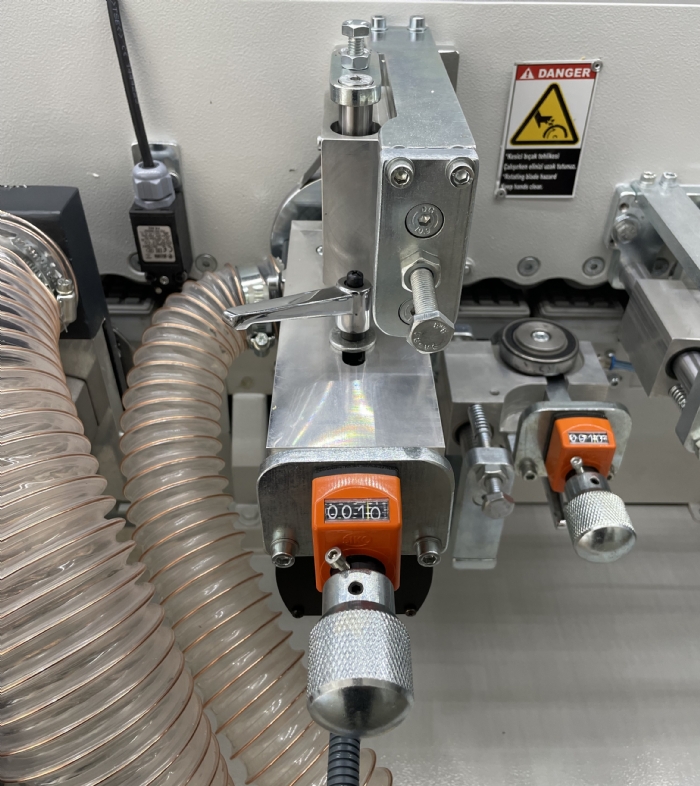

Top Milling Surface milling sensitively with high frequency motors at 18000 rpm 0,4-3 mmband thickness calibrated by sensitively indicator
Scraping Scraping 0,4-3 mm band thickness calibrated by sensitively indicator

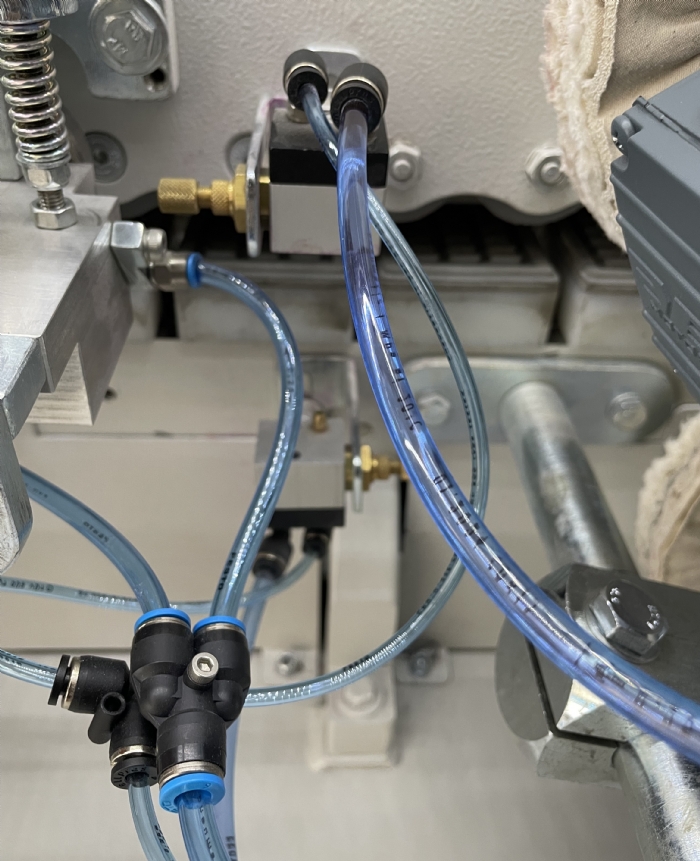

Cleaning Liquid Glue remnants cleaning easily with cleaning liquid

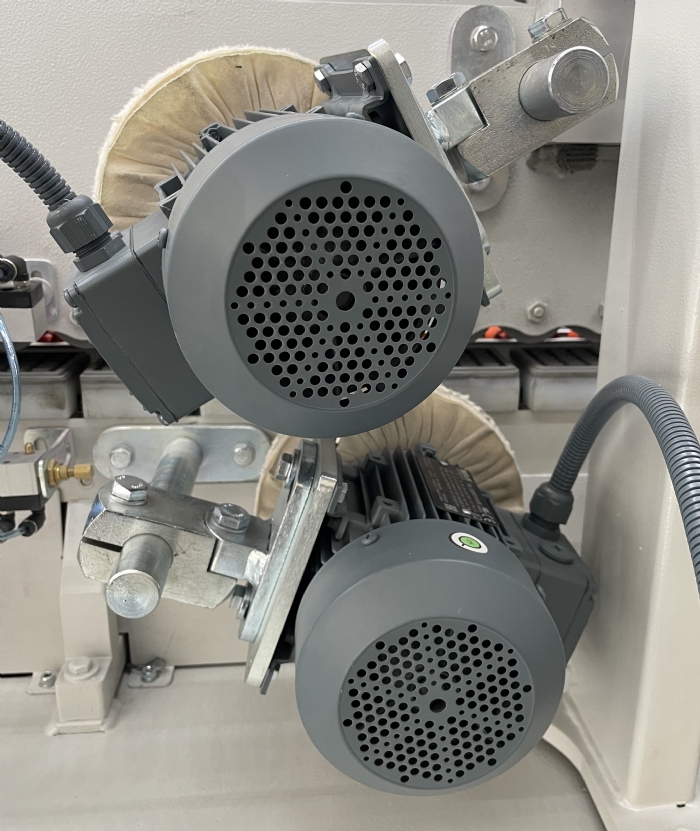

Polishing Unit Clean and bright surface obtained by 15° angled buffer motors
Canal With Jumping 2,2 kw 8000 rpm powerful motor can groving 4-12 mm. Dust suction unit absorbs all shavings
GROOVING OPTIONS

TECHNICAL INFORMATIONS

EKOBANT 427

MAXIMUM PANEL THICKNESS

8 MM / 60 MM.

BAND THICKNESS

0,4 MM / 5 MM.

MINIMUM PANEL LENGTH

120 MM

MINIMUM PANEL WIDTH

100 MM

GLUE CAPACITY

4 LT / 5 KG

GLUE HEATING TIME

25-30 MINUTE

WORKING SPEED

10 M/MIN

FRONT MILLING CUTTER MOTORS (2 PIECES)

2,2 KW 12.000 R.P.M

TRIM  MILLING CUTTER MOTORS (3 PIECES)

3 X 0,55 KW 18.000 R.P.M

BUFFER MOTORS (2 PIECES)

0,25 KW / 3.000 R.P.M

GROVING MOTOR

2,6 KW TRF 12.000 R.P.M

DUST SUCTION MOTOR

3 KW 3.600 M3

POWER

18 KW

VOLTAGE

380 – 400 V / 50–60 HZ

CURRENT

48 AMPER

WORKING PRESSURE

4/6 BAR

TRANSPORTATION DIMENSIONS LENGHT - WIDTH - HEIGHT

5.2 X 0.75 X 1.5 M

WEIGHT

1.400 ± 40 KG
