TECHNICAL INFORMATIONS

KA 400

KA 500

KA 600

KA 630

1)       TABLE SIZE

420X790 MM

520X890 MM

620X990 MM

640X990 MM

2)       MAX. WORKING WIDTH

400 MM

500 MM

600 MM

630 MM

3)       MAX. WORKING HEIGHT

250 MM

250 MM

250 MM

250 MM

4)       MAX. CUTTING DEPTH

8 MM

8 MM

8 MM

8 MM

5)       NUMBER OF KNIVES

4

4

4

4

6)       CUTTER DIAMETER

110 MM

110 MM

120 MM

120 MM

7)       SPINDLE R.P.M

4.500 RPM

4.500 RPM

4.500 RPM

4.500 RPM

8)       FEEDING SPEED

7 - 14 MM / MIN

7 - 14 MM / MIN

7 - 14 MM / MIN

7 - 14 MM / MIN

9)       SPINDLE MOTOR POWER

4 KW

5,5 KW

5,5 KW

7,5 KW

10)    FEEDER MOTOR POWER

0,5 - 0,7  KW

0,6 - 0,8  KW

0,6 - 0,8  KW

0,6 - 0,8  KW

11)    TABLE ADJUSTMENT MOTOR

0,25 KW

0,25 KW

0,37 KW

0,37 KW

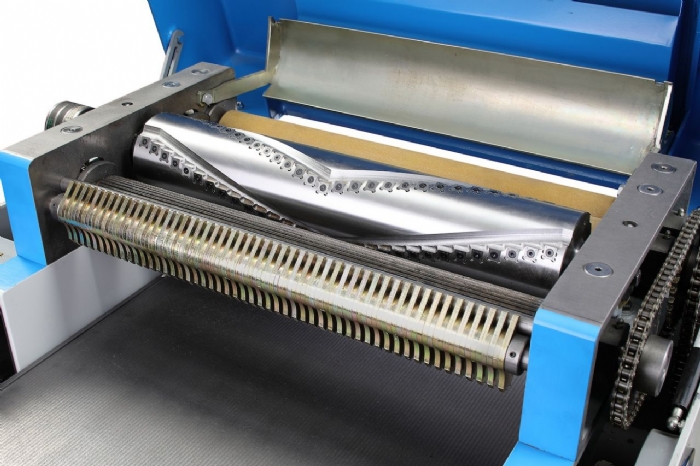

12)    HELICAL CUTTERS

 OPTIONAL

 OPTIONAL

 OPTIONAL

 OPTIONAL

13)    DIMENSIONS

800X1000X1050 MM

900X1100X1050 MM

1000X1100X1050 MM

1000X1200X1050 MM

14)    WEIGHT

620 KG

690 KG

810 KG

840 KG
